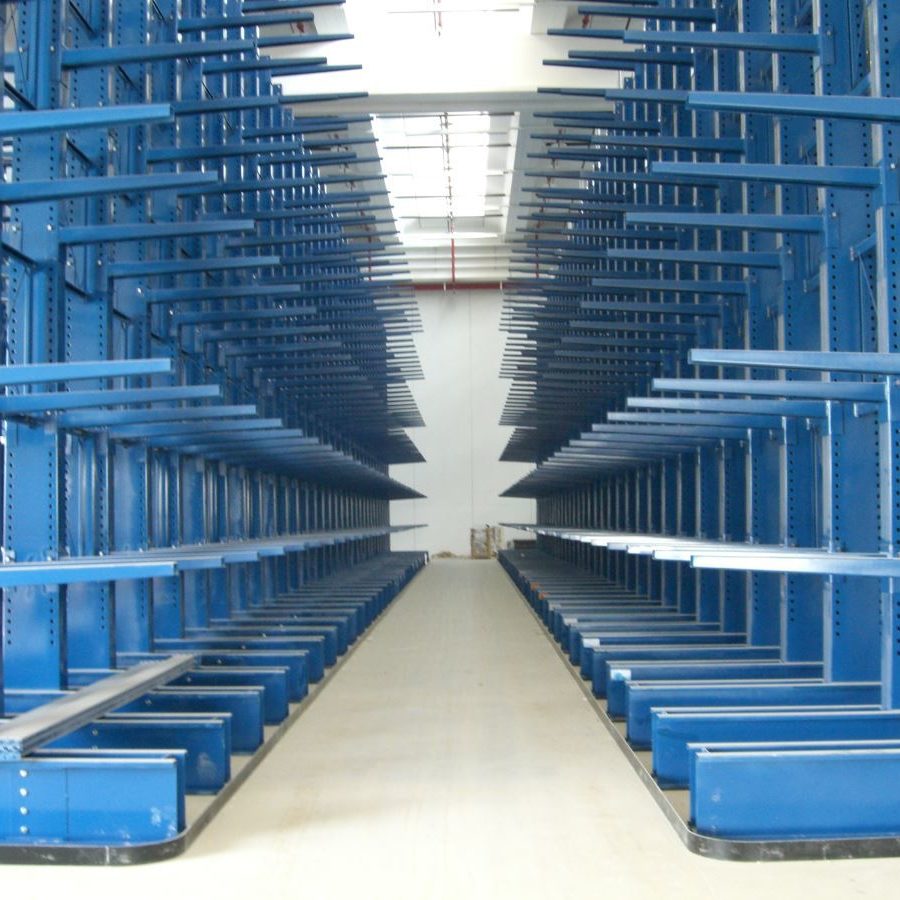

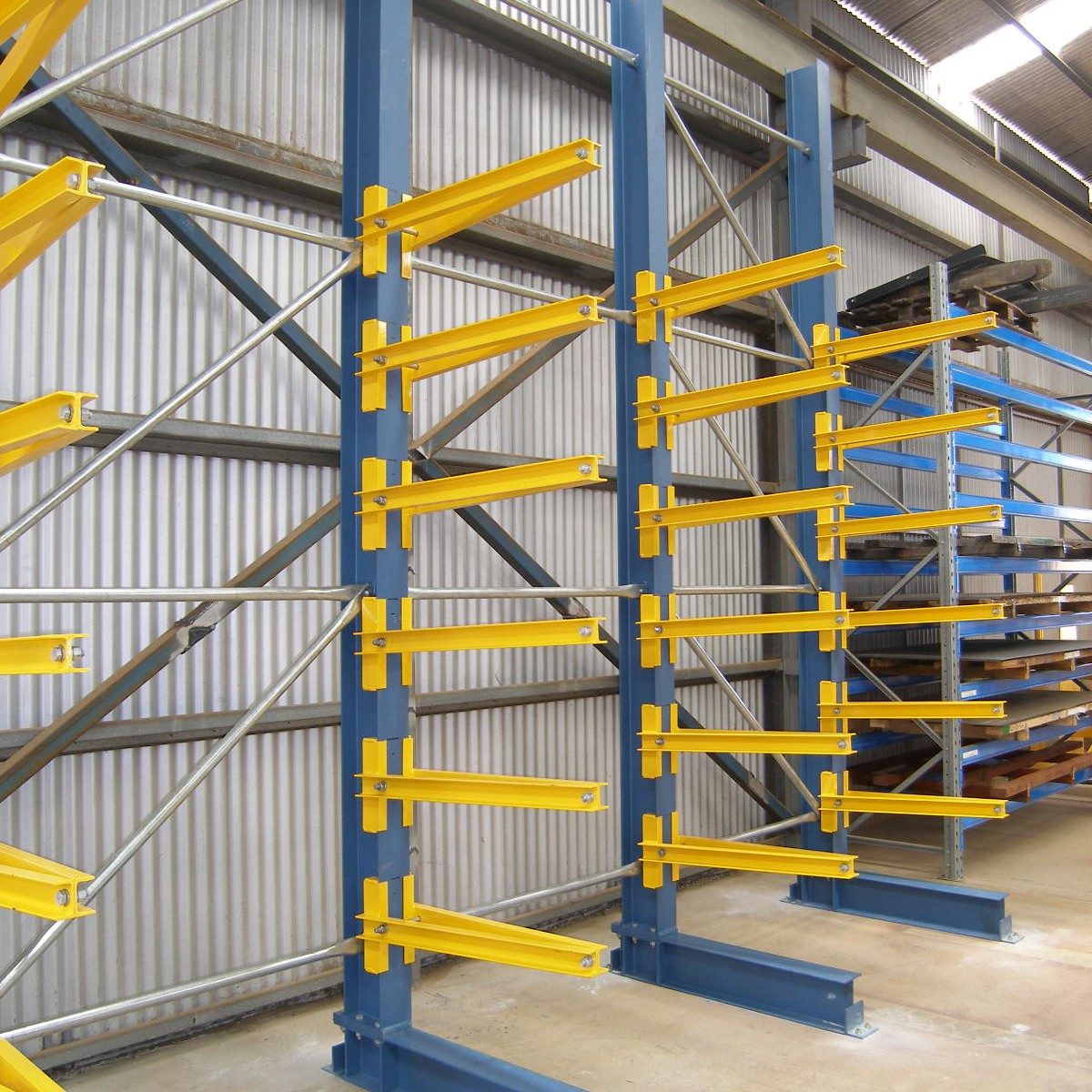

Cantilever Racking

How it Works:

  • Large bases attached at right angles to vertical columns
  • Beams, also known as arms, are anchored at one end only
  • Supporting upright and base bear the load
Cantilever Pallet Racking

Product Features

Advantages

  • Can be very tall due to its unique weight distribution system
  • Up to 25% increase in storage capacity compared to others because of its lack of posts or columns on the aisle
  • Can store items of virtually any size or shape

Disadvantages

  • Aisle space between each rack is required
  • Less efficient for pallet storage than other types of racking
  • Design and installation can be relatively expensive

Applications

Best for facilities storing large, awkward, long, or bulky materials



Examples:

  • Timber mills
  • Plumbing manufacturers/distributors
  • Metal fab shops
